C7027A1049 Honeywell C7027A 1049 Flame Sensor Mini-peeper 1/2" Flame-eye

Product Categories
IRONMAN TECHNOLOGY CO., LTD
Contact Now

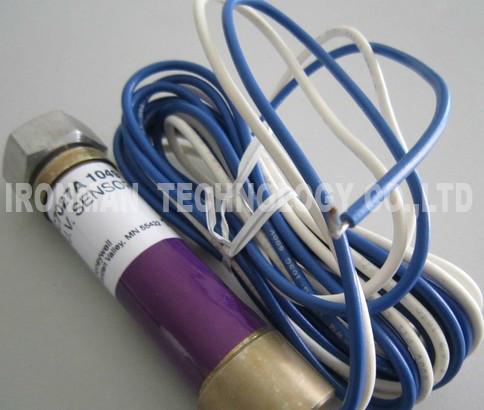

C7027A1049 Honeywell C7027A 1049 Flame Sensor Mini-peeper 1/2" Flame-eye

  • 1
  • 2

Brand Name : Honeywell

Model Number : C7027A1049

Place of Origin : USA

MOQ : 1 PCS

Price : USD

Payment Terms : T/T

Delivery Time : 3-5 days

Condition : Original New

Warranty : 12 Months

Shipping term : DHL/TNT/UPS/FEDEX etc.

Contact Now

Ironman Technology Co.,LTD

About us:

We specializes in automation parts and industrial controls, PLCS,DCS,Module/Board,Power supply,Controller, etc.We maintains an inventory of new and obsolete parts utilized in all areas of the manufacturing and industrial sectors.

Featured Brand:
● HONEYWELL ● AB ● OMRON ●SIEMENS ●SCHNEIDER

● ROSEMOUNT● ABB ● NOTIFIER ●MTL ● GE ●And many more !

C7027A1049 Honeywell C7027A 1049 Flame Sensor Mini-peeper 1/2" Flame-eye

Lead time:3-5 days

New with one year warranty

C7027A1049 Honeywell C7027A 1049 Flame Sensor Mini-peeper 1/2" Flame-eye

Overview

Compact flame detector for use with flame safeguard controls with ultraviolet amplifiers.

Features

  • Use with Honeywell Flame Safeguard primary safety controls and burners requiring ultraviolet flame detection.
  • C7027 mounts on a 1/2 in. sighting pipe by using an integral collar.
  • Detectors can be wired in parallel for difficult sighting applications.
  • C7027 seals against pressures up to 5 psi (34.5kPa) when correctly installed.
  • Allows for blast tube mounting due to compact size.
  • C7044 mounts with a two screw bracket.
  • The C7044 UV sensor tube is enclosed in a stainless steel housing.
  • C7044 has the capability of side or end viewing in flame monitoring applications.

Product Specifications

Application
Coal fired burners; Gas fired burners; Oil fired burners
Dimensions (in.)
1 1/16 in. diameter x 4 in. long
Dimensions (mm)
27 mm diameter x 102 mm long
Includes
1/2 in. NPT threaded spud connector.
Used With
Flame Amplifiers: R7249A, B, R7849A, B, R7749B, R7259, R7290
Comments
Detects ultraviolet radiation in flames
Mounting
Integral nut for 1/2 in. sighting pipe.
Approvals, Underwriters Laboratories Inc.
Listed: File No. MP268, Guide No. MCCZ
Approvals, Canadian Standards Association
Certified: Master Report LR95329-1
Electrical Connections
2 NEC Class 1 lead wires
Vibration
0.5 G max
Approvals, Swiss RE
Acceptable
Approvals, Factory Mutual
Approved: Report No. 24181.03
Ambient Temperature Range (F)
0 F to 215 F
Ambient Temperature Range (C)
-18 C to +102 C
Lead Length (in.)
96 in.
Lead Length (mm)
2438 mm

We have good price on AB PLC,Omron PLC and Honeywell C200,C300,model number such like TC/TK/MC/CC/511/512/513/514 and some FC series goods,
If you have other enquiry,pls feel free to let me know.
